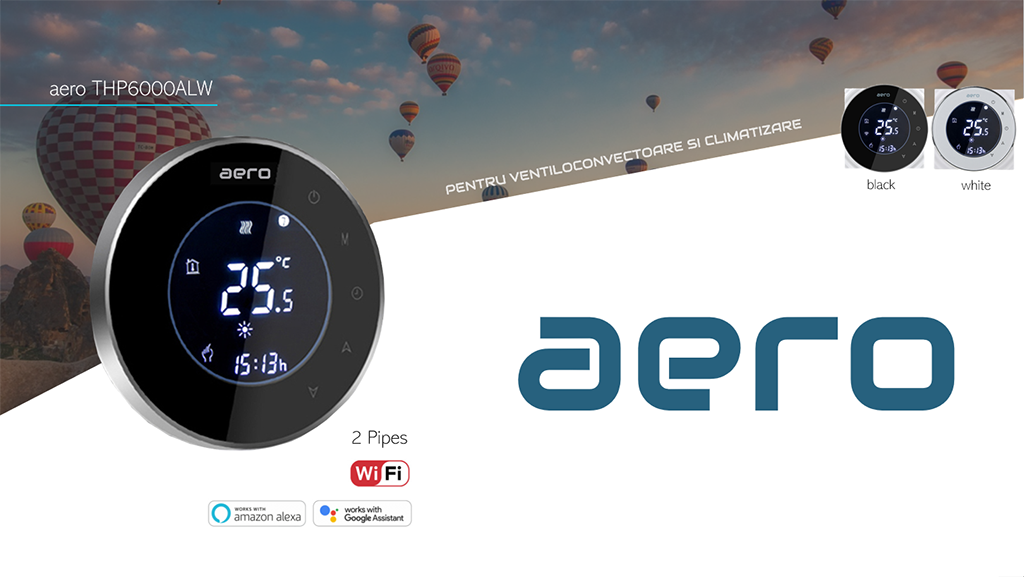

Termostat AERO THP6000ALW Black, Wi-Fi, 2 tevi, pentru Ventiloconvector, Incalzire, Racire, Ventilatie, Smart, Programabil, Alexa, Google, Aplicatie Tuya, Smart Life, Negru

ABOUT YOUR THERMOSTATS

The THP-6000 range has been developed to control electric underfloor, water heating or water/gas boiler systems. These units are designed for use in commercial, industrial, civil and domestic properties.

FEATURES

On Appearance

On Functionality

DIMENSION

TECHNICAL DATA

Power Supply: 95 ~ 240 VAC, 50 ~ 60HZ

Current Load：3A (water heating / water boiler / gas boiler) 16A (electric heating)

Sensor: NTC3950, 10K

Accuracy: ±0.5℃ or ±1℉

Set Temp. Range: 5 -35 ℃

Dispaly Temp. Range: 5 ~ 99 ℃

Ambient Temp.: 0 ~ 45 ℃

Ambient Humidity: 5 ~ 95 % RH (Non Condensing)

Storage Temp.: -5 ~ 45 ℃

Power consumption: <1.5W

Timing Error: < 1%

Shell Material: PC +ABS (Fireproof)

Shell Material: PC +ABS (Fireproof)

Wire Terminals: Wire 2 x 1.5 mm2 or 1 x 2.5 mm2

Protection class IP30

Buttons: Capactive Touch Buttons

WIRING

HOME SCREEN QUICK REFERENCE

INSTALLATION

Your thermostat is suitable for installation whitin a standard 86 mm pattress box or European 60 mm pattress box.

Step 1. Keep power off. See Fig 1.

Step 2. Remove the mounting Plate by rotating the LCD part. See Fig 2.

Step 3. Connect power supply, load into the appropriate terminals. (see “Wiring your thermostat” for details and Fig 3).

Step 4. Fix the mounting plate into the wall with screws in the box.See Fig 4.

Step 5. Fasten body of thermostat and the mounting plate through rotating. See Fig 5.

Step 6. Installation complete. See Fig 6.
