Domeniul de aplicare

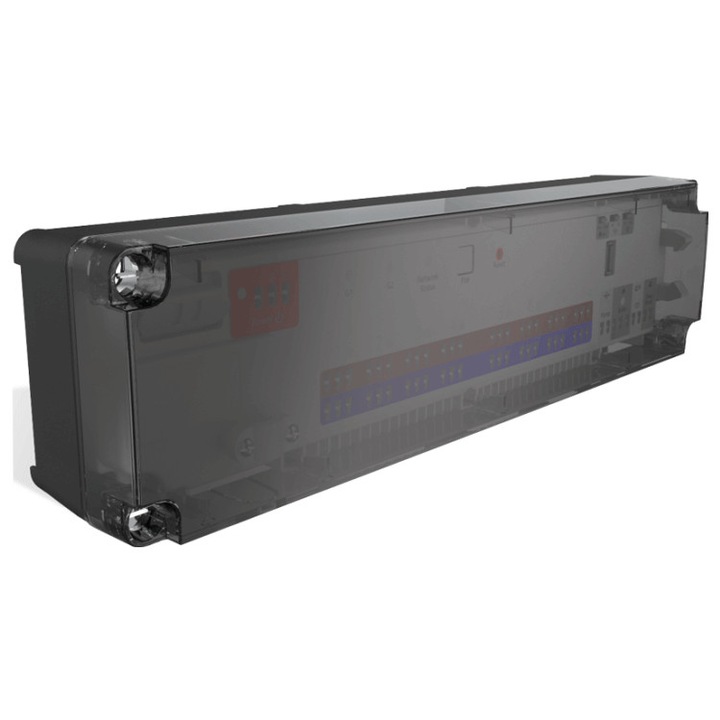

Distributia alimentarii electrice, a semnalelor de pozitionare si a unui program de timp comun pentru termostatele de camera (analogice sau cu digitale) si dispozitivele de actionare termice (termomotoare).
_x000D_
_x000D_
_x000D_
_x000D_
DATE TEHNICE:
_x000D_
_x000D_
Alimentare electrica
_x000D_
_x000D_
- _x000D_
Alimentare electrica 230 V~ ±10%, 50…60 Hz
_x000D_
_x000D_ - _x000D_
Alimentare electrica 24 V~ ±20%, 50…60 Hz
_x000D_
_x000D_ - _x000D_
Siguranta fuzibila a distribuitorului 230 V = T4AH /24 V = T2A
_x000D_
_x000D_
Parametrii
_x000D_
_x000D_
- _x000D_
Cod produs: 3F79803
_x000D_
_x000D_ - _x000D_
Circuite/zone 10
_x000D_
_x000D_ - _x000D_
Canale temporizatoare/asezare pozitie de zero 2
_x000D_
_x000D_
Conditii ambientale
_x000D_
_x000D_
- _x000D_
Temperatura admisibila in ambient 0…50 °C
_x000D_
_x000D_ - _x000D_
Temperatura admisibila de depozitare -20…70 °C
_x000D_
_x000D_ - _x000D_
Umiditate admisibila in ambient 5…80% umiditate relativa fara condensare
_x000D_
_x000D__x000D_
_x000D_
Intrari
_x000D_
_x000D_
_x000D_
_x000D_
- _x000D_
Restabilire Intrare contact liber de potential
_x000D_
_x000D_ - _x000D_
Incalzire/racire Intrare contact liber de potential
_x000D_
_x000D_ - _x000D_
Limitator t°C sau punct de roua Contact normal inchis liber de potential
_x000D_
_x000D_
Iesiri
_x000D_
_x000D_
_x000D_
_x000D_
- _x000D_
Numar de termomotoare 10 canale: Max 18 buc.
_x000D_
_x000D_ - _x000D_
Conexiune pompa Max. 6 (2) A
_x000D_
_x000D_
_x000D_
_x000D_
Constructie
_x000D_
_x000D_
- _x000D_
Material carcasa Plastic ABS ignifug, negru RAL9005
_x000D_
_x000D_ - _x000D_
Capac Plastic gri transparent
_x000D_
_x000D__x000D_
_x000D_
Borne/cablu de conexiune
_x000D_
_x000D_
- _x000D_
Borne de conexiune Borne cu tehnologie cu arc pentru 0,2 pana la 1,5 mm² intrare de cablu verticala
_x000D_
_x000D_ - _x000D_
Montaj Montaj pe perete sau bara DIN
_x000D_
_x000D_ - _x000D_
Cablu electric: Solid: NYM-J/NYM-O (max. 5 x 1,5 mm²) / Flexibil: H03V2V2H2-F / H05V2V2H2-F
_x000D_
_x000D_ - _x000D_
Dispozitiv de prindere a cablurilor Integrat in carcasa
_x000D_
_x000D_
Standarde, instructiuni
_x000D_
_x000D_
- Tip de protectie IP 20 (EN 60529)_x000D_
- Clasa de protectie II (EN 60730)_x000D_
- Directiva privind compatibilitatea_x000D_
- electromagnetica 2014/30/UE_x000D_
- EN 60730-1 Tip 1C_x000D_
- Directiva Joasa Tensiune 2014/35/UE EN 60730-1 & -2-9 Tip 1C_x000D_
